Specifications

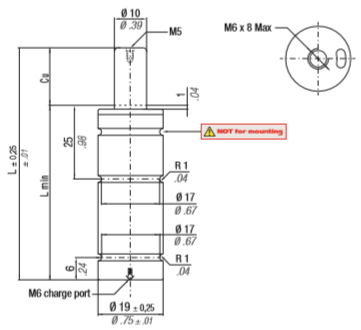

The listed diameters are in mm in fully flat position.
| SKU | MP 150 - 032 - A |
|---|---|
| Price Group | NB |
| Verwachte levertijd | in overleg |
| F1p Ib | 542.00 |
| Buitendiameter in inch | 0.75 |
| Buitendiameter in mm | 19 |
| Ib | 337.00 |
| ~Kg | 0.11 |
| Vo cm^{3} | 10.40 |
| F1i daN | 214.00 |
| L min | 88.00 |
| F1p daN | 241.00 |
| F1i Ib | 481.00 |
| daN | 150.00 |
| Stroke | 32.00 |
| L | 120.00 |
