Specifications
The listed diameters are in mm in fully flat position.
| SKU | 2 HZP |
|---|---|
| Price Group | aanvraag |
| Verwachte levertijd | in overleg |
| Bevesting van het geleidingsdeel per schroef | 70 Nm |
| Geleidertype middel beveiligd tegen rotatie | Beveiligd tegen rotatie met speling + - 0,1 mm |
| Geleidertype beveiligd tegen rotatie | Rond |
| In hoogte verstelbare geleider | Handslinger |
| Maximale toegestaane hefboomwerking | 350 N |
| Positie van de hendel | Rechts instelbaar 360 ° |
| gereedschapsklemmen | Afneembare klem |
| locatie gat | Ø10 H7 |
| In hoogte verstelbaar | 85.00 |
| Projectie | 70 |
| Max. Perskracht in de UT | 1,5 kN |
| ~Kg | 7.50 |
| Slag | 54 |
| Kleur | RAL 7035 |
Product description
| Press type |

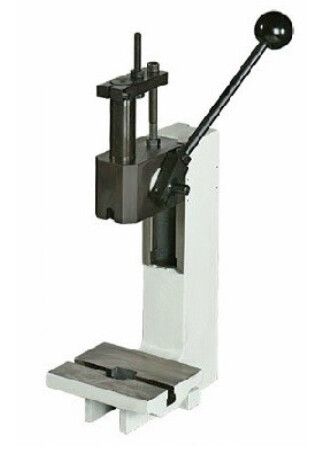

Rack and pinion presses
|
|---|---|
| Operation |
Manually
|
| Overhang |
70mm
|
| Installation height adjustable |
85 - 185 mm
|
| Stroke |
54 mm
|
| Max. pressforce at lower dead center |
1,5 kN
|
| Lever operating force, allowed maximum |
350 N
|
| Location bore |
Ø10 H7
|
| Clamped piece |
Removable clamped piece
|
| Direction type |
Circular
|
| Twist-free guide |
Twist-free with play +- 0,1 mm
|
| Hand lever position |
Right 360° adjustable
|
| Height adjustment guide unit |
Hand crank
|
| Fastening guide unit per screw |
70 Nm
|
| Standard color |
RAL 7035
|
| Weight |
7,5 kg
|
