Specificaties
De vermelde diameters zijn in mm in volledig vlakke positie.
| SKU | 60 kN LHP |
|---|---|
| Price Group | aanvraag |
| Verwachte levertijd | in overleg |
| Geleidertype middel beveiligd tegen rotatie | Door strips aan te passen |
| Geleidertype beveiligd tegen rotatie | Prismagids |
| Positie van de hendel | 360 ° links en rechts instelbaar |
| gereedschapsklemmen | Afneembare klem |
| locatie gat | Ø 25 H7 |
| In hoogte verstelbaar | 115.00 |
| Projectie | 200 |
| Max. Perskracht in de UT | 60 kN |
| ~Kg | 218.00 |
| Slag | 50 mm - 6 mm |
| Kleur | RAL 7035 |
Productbeschrijving

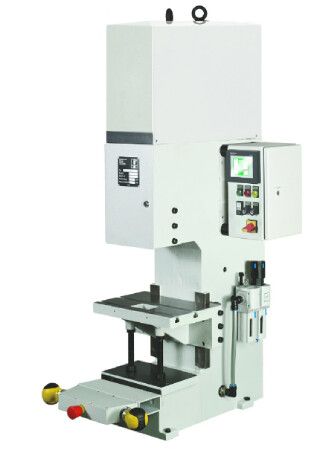

| Press type |
C stand with adjustable table
|
|---|---|
| Operation |
Control ( optional )
|
| Overhang |
200 mm
|
| Installation height adjustable |
115 mm - 375 mm
|
| Stroke/power stroke |
50 mm - 6 mm
|
| Pressing force power stroke |
60 kN
|
| Pressing force approach |
5,4 kN
|
| Pull-out force return stroke |
4,1 kN
|
| Force generation |
Hydropneumatic cylinder
|
| Operating pressure |
6 bar
|
| Location bore |
Ø 25 H7
|
| Clamped piece |
Removable clamped piece
|
| Twist-free guide |
Prism guide
|
| Guide play-free adjustable |
By adjustment gib
|
| Height adjustment guide unit |
Ratchet
|
| Fastening guide unit per screw |
170 Nm
|
| Connection hose |
1/2''
|
| Two-Hand safety control ES07 |
Optional
|
| Two-Hand safety control ZS07 |
Optional
|
| Two-Hand safety control Spice Flex |
Optional
|
| Standard color |
RAL 7035
|
| Weight |
218 kg
|
